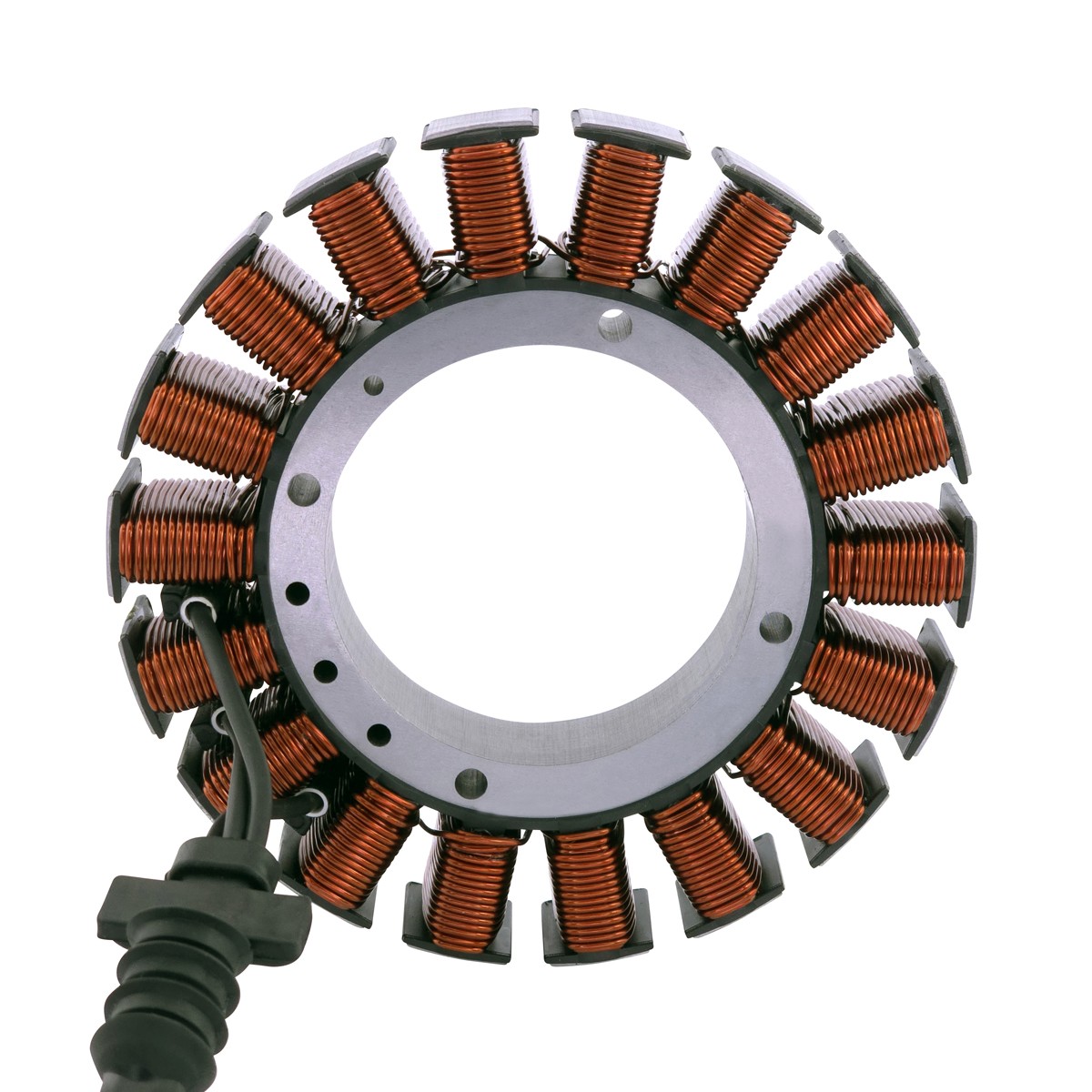

Premium Stator for Harley Davidson Breakout / Dyna / Fat Boy / Softail 1584 1690 1800 2008-2017 | 30017-08 / 30017-08A&nbsp KEY FEATURES&nbsp

Brand new aftermarket stator

Direct replacement to your original unit. Plug-and-play, direct fit, easy installation

Highest grade of lamination materials

Highest grade of copper winding, resistant to 200 degrees Celsius

All products shipped are tested

DESCRIPTION&nbsp

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Vehicle models fitment&nbsp

Harley Davidson Blackline Dark Custom FXS 1600 -- 2013
Harley Davidson Blackline FXS 1600 -- 2011-2013
Harley Davidson Blackline Hard Candy Custom FXS 1600 -- 2013
Harley Davidson Breakout CVO FXSBSE 1800 -- 2013-2014
Harley Davidson Breakout CVO Hard Candy Custom FXSBSE 1800 -- 2013-2014
Harley Davidson Breakout CVO Pro Street FXSE 1800 -- 2016-2017
Harley Davidson Breakout FXSB 1700 -- 2013-2017
Harley Davidson Breakout Hard Candy Custom FXSB 1700 -- 2014
Harley Davidson Cross Bones FLSTSB 1600 -- 2008-2011
Harley Davidson Dyna CVO Fat Bob FXDFSE 1800 -- 2009
Harley Davidson Dyna CVO Fat Bob FXDFSE2 1800 -- 2010
Harley Davidson Dyna Fat Bob 1584 -- 2008-2011
Harley Davidson Dyna Fat Bob 1690 -- 2012-2017
Harley Davidson Dyna Low Rider FXDL 1584 -- 2008-2009
Harley Davidson Dyna Low Rider FXDL 1690 -- 2014-2017
Harley Davidson Dyna Low Rider FXDLS 1800 -- 2016-2017
Harley Davidson Dyna Street Bob 1584 -- 2008-2013
Harley Davidson Dyna Street Bob 1690 -- 2014-2017
Harley Davidson Dyna Super Glide 1584 -- 2008-2013
Harley Davidson Dyna Super Glide Custom FXDC 1690 -- 2014
Harley Davidson Dyna Super Glide Screamin Eagle FXDSE2 1800 -- 2008
Harley Davidson Dyna Switchback 1690 -- 2012-2016
Harley Davidson Dyna Wide Glide 1584 -- 2008-2011
Harley Davidson Dyna Wide Glide 1690 -- 2012-2017
Harley Davidson Fat Boy 1584 -- 2008-2011
Harley Davidson Fat Boy 1690 -- 2012-2017
Harley Davidson Fat Boy Lo 1584 -- 2010-2011
Harley Davidson Fat Boy Lo S FLSTFBS 1800 -- 2016-2017
Harley Davidson Heritage Softail 1584 -- 2008-2011
Harley Davidson Heritage Softail 1690 -- 2012-2017
Harley Davidson Night Train FXSTB 1584 -- 2008-2009
Harley Davidson Rocker C FXCWC 1600 -- 2008-2011
Harley Davidson Rocker FXCW 1600 -- 2008-2009
Harley Davidson Softail 1584 -- 2008-2011
Harley Davidson Softail CVO Convertible FLSTSE 1800 -- 2010
Harley Davidson Softail CVO Convertible FLSTSE2 1800 -- 2011
Harley Davidson Softail CVO Convertible FLSTSE3 1800 -- 2012
Harley Davidson Softail CVO Deluxe FLSTNSE 1800 -- 2014-2015
Harley Davidson Softail Deluxe Anniversary FLSTN -- 2008
Harley Davidson Softail Deluxe FLSTN 1600 -- 2008-2011
Harley Davidson Softail Deluxe FLSTN 1700 -- 2012-2017
Harley Davidson Softail Deluxe Hard Candy Custom FLSTN 1700 -- 2013-2014
Harley Davidson Softail Slim FLS 1700 -- 2012-2017
Harley Davidson Softail Slim S FLSS 1800 -- 2016-2017
Harley Davidson Softail Springer CVO FXSTSSE3 1800 -- 2009
Harley Davidson Softail Springer Screamin Eagle CVO FXSTSSE2 1800 -- 2008

OEM part replacement&nbsp

30017-08
30017-08A

Specifications&nbsp

Dimensions:
Interior diameter: 71 mm
Exterior diameter: 144 mm
Thickness: 24 mm
Length of wires stator to grommet: 40 mm
Length of wires grommet to plug: 130 mm

Other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 18
Wire to wire resistance:
Alternator: Black to Black = 0.6 ohms +/-20%
Alternator: Black to ground = O.L

instructions&nbsp

Before installing your new stator

• Check the AC output of the stator
• Replace any burned or corroded connectors on stator and regulator rectifier
• Check and repair any melted wiring
• Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
